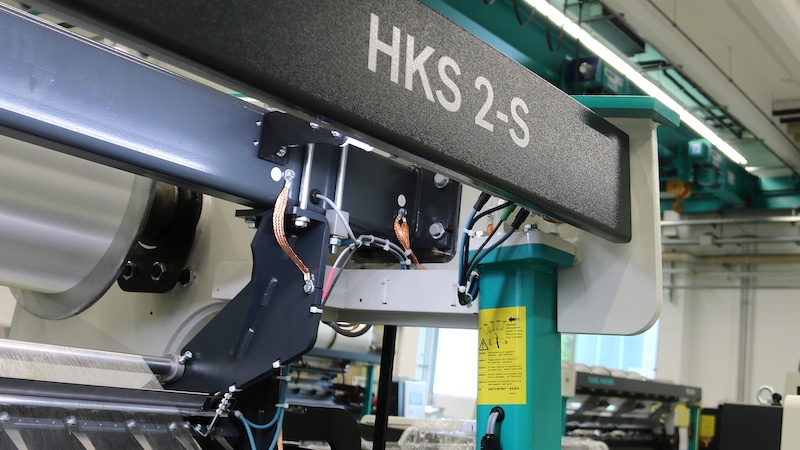

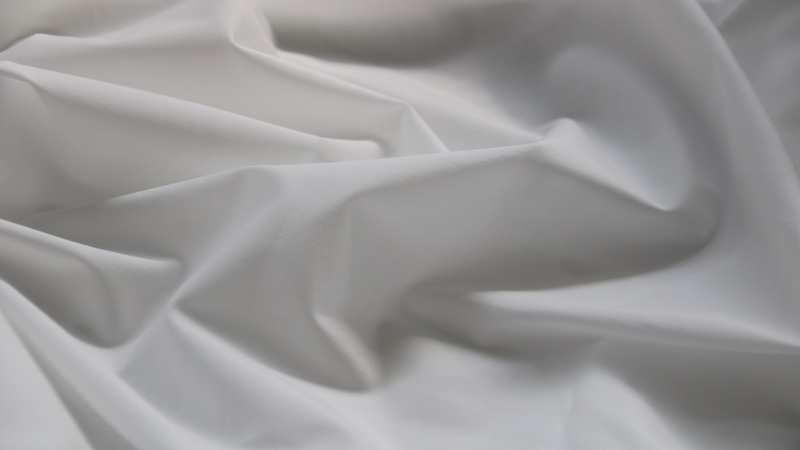

Just in time for ITMA ASIA + CITME in October 2024, the bestseller was launched with an upgrade in the gauge area. With a gauge of E44, HKS 2-S brings a breath of fresh air to many areas of application, especially the promising outdoor clothing segment: With their dense surfaces, the supple E44 fabrics offer excellent protection against the sun's harmful rays. Their UV protection factor is more than twice as high as that of circular knitwear. The silky fabrics are also soft, comfortable to wear, breathable and quick-drying, and they can be produced extremely efficiently. At a speed of up to 3,200 rpm and a working width of 130", around 200 kg of fabric is produced per day. This made the HKS 2-S a real highlight at the ITMA ASIA + CITME 2024, and the machine was sold several times during the trade fair.

The HKS 2-S has been equipped with the modern automation platform KAMCOS® 2 Connect. This allows customers to network their machines and utilise all cloud-based solutions from the digital world of KARL MAYER. The Pattern Data System (PDS) enables the secure and simple storage and management of article data without the need to exchange sensitive data via USB stick. Digital offerings for optimising remote service also ensure shorter downtimes and more efficient after-sales service. Other solutions enable the integration of systems, for example for monitoring threads and the operating status of the machine, thereby maximising machine performance.

The HKS 2-S offers simple operation with other successfully established features, including laser stop, camera and homogenous lighting of the working area, which indicates the operating status of the machine, which is visible from a distance. Other tried and tested features of the HKS series in the HKS 2-S include bars based on carbon composite technology, a mechanical pattern drive, an electronically controlled yarn feed and a continuous fabric take-off that is also electronically controlled.

However, the latest upgrade required some fine-tuning.

“The high gauge required even more precise coordination of all components. The stable running of the HKS 2-S in E 44 at the uniquely high speed is only possible thanks to their very precise interaction,” says Kai Sulzmann, Project Manager of the KARL MAYER warp knitting business unit.
